The structural framing of a home is like the skeleton of the human body. It is essential in keeping the interior upright and standing and the weight evenly distributed. Without proper framing, the home would not be able to bear the weight of the furniture and home goods or withstand external elements like snow on the roof and strong winds. This framework, typically composed of wood joists, studs, rafters, or trusses, is a complex system designed to support everything in the house.

During the construction and when maintaining homes, professionals from various trades, including electricians, plumbers, and HVAC technicians, often need to modify this framework to install or route their systems. When these modifications are done correctly, the structural integrity of the home remains intact. However, when notching and boring (cutting holes or notches) are poorly executed, it can lead to a weakened structure, threatening the structural integrity of the home and the family who lives within its four walls.

The damage caused by improper notching and boring is most commonly found in basements, where the main level's floor joists are visible. These joists work under two types of forces - compression at the top, holding up the weight above, and tension at the bottom, pulling the structure apart. Improper notching or boring in these joists disrupts this balance, potentially leading to severe consequences like sagging floors or, in worst-case scenarios, total collapse.

To put this into perspective, imagine a plumber needing to fit a 4" drainpipe where a floor joist exists. Typically, the solution is to cut away part of the joist to accommodate the pipe, but this can significantly weaken the structural support. Even if there are no immediate signs of damage, the long-term effects can be detrimental, particularly when the house experiences changes in load distribution, like new occupants moving in or rearranging heavy furniture.

Repairing such damage often involves a technique known as 'sistering.' This process includes installing new lumber parallel to the damaged joist and securing it with through-bolts on both sides of the damaged area. Sistering transfers the load across the compromised section to the new lumber, reinforcing the original joist's strength. It's important to note that using nails is not sufficient for this repair.

When it comes to creating holes and notches in joists, there are specific building guidelines to follow:

Holes must be positioned at least 2 inches away from the top or bottom of a joist, and not near other holes or notches.

The diameter of any hole should not exceed one-third of the joist's depth.

Notching is prohibited in the middle third of a joist's length, which is the weakest section.

At the ends of a joist, notches should be no larger than one-fourth of the joist's depth, and elsewhere no more than one-sixth.

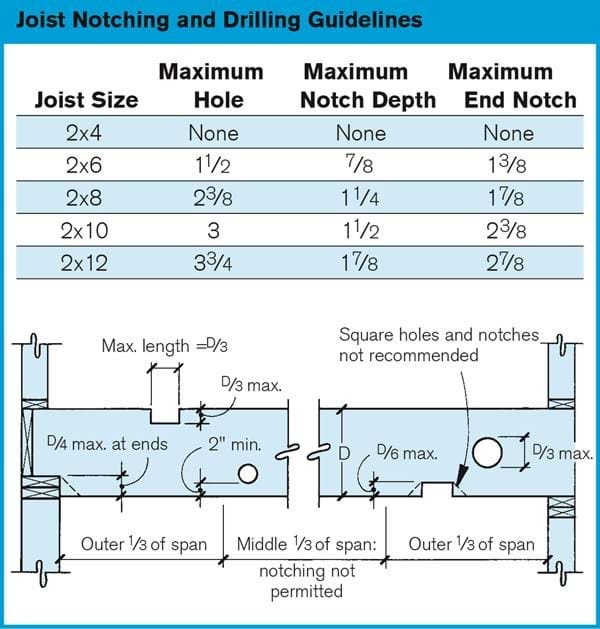

The below graphic shows what sizing and where holes and notches may exist in structural joists:

joist notching and drilling guidelines with diagram

It's important to understand that engineered joists have different requirements, often specified by the manufacturer. Engineered joists feature solid top and bottom plates with a central plywood-like component. For these, consulting with the manufacturer is key to understanding the permissible sizes and patterns for holes and notches.

Additionally, for structures with floor trusses (similar to roof trusses), these engineered components should not be altered without approval from the truss designer or manufacturer. Typically, these trusses are designed with sufficient openings for plumbing, wiring, and ductwork, reducing the need for modifications.

As part of a thorough home inspection, it's essential to look for signs of structural movement or damage. This includes checking for sagging or uneven floors, windows and doors that don't open or close properly, and excessive cracks in walls or ceilings. These indicators can reveal whether the structural components have been damaged and are failing. While home inspectors are not licensed structural engineers and cannot provide legal structural certifications, they play a crucial role in identifying potential issues and recommending further professional evaluation.

In conclusion, understanding and applying the correct techniques for notching and boring joists is crucial in maintaining the structural integrity of a home. As professionals in this field, it's our responsibility to ensure these practices are followed diligently, safeguarding the stability and safety of the structures we inspect and maintain. By adhering to these guidelines, we can help prevent potential damage and ensure the longevity of the homes you live in.
