Understanding Radon Mitigation Systems

As you go about your everyday household chores, you may find spots of mold, smell odors, and see paint chipping – all signs that indicate issues within your home. Just like our bodies, our homes age and experience routine wear and tear. But some areas within our homes are afflicted by dangerous issues undetectable by the human senses. Radon, an odorless, colorless, and tasteless radioactive gas, is the second leading cause of lung cancer to smoking, according to the Environmental Protection Agency (EPA). Radon is present in roughly 1 in 15 homes and can seep in through cracks in the foundation, gaps in construction joints, and other entry points, accumulating to dangerous levels over time. Radon mitigation systems are crucial for safeguarding your health by preventing radon infiltration and effectively venting the gas outdoors.

How Radon Mitigation Systems Work

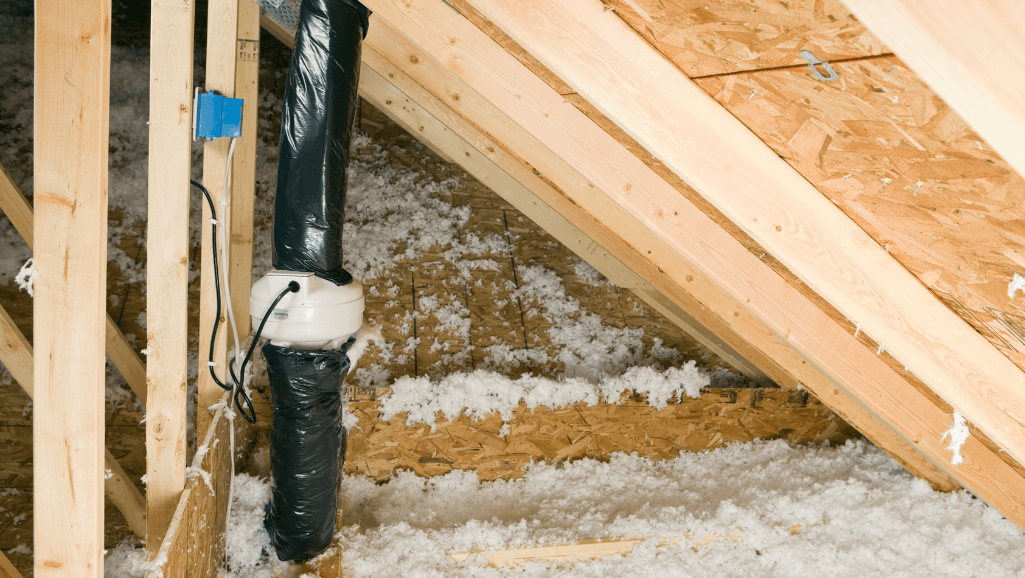

How Radon Mitigation Systems Work

Radon mitigation systems work by creating a negative pressure zone and venting radon gas outdoors, freeing your family from the harmful effects of prolonged exposure. To create the negative pressure zone, a vent pipe, known as a suction point, is installed in the lowest level of the home, creating an effective buffer for entry. A radon-specific fan is then installed to create suction, drawing radon gas from the soil beneath the home before it can infiltrate the living space above. When the radon gas rises, it is channeled through the vent pipe up to the roofline, where it is safely expelled outside.

In some cases, radon mitigation systems may have continuous monitoring features to track radon levels and system performance.

5 Key Components of Radon Mitigation Systems

  1. Suction Point: Located beneath the building's foundation, the suction point is where radon gas is drawn out of the soil.

  2. Radon-Specific Fan: Creating negative pressure within the system, this fan allows radon to be properly vented from the home.

  3. PVC Piping: PVC (polyvinyl chloride) piping transports radon gas from the suction point to the radon-specific fan so it can be released outside.

  4. Manometer: A manometer is used to measure and monitor the pressure differentials within the radon mitigation system, ensuring proper functioning and performance.

  5. Ventilation Stack: The ventilation stack is the section of the vent pipe that expels radon from the roof.

Types of Radon Mitigation Systems

There are a number of ways you can mitigate radon in your home, including crawl space ventilation and proactive measures. Crawl space ventilation is simple and effective, ventilating the crawl space beneath the home to reduce high radon levels. Homes with elevated crawl spaces or dirt floors as the foundation could benefit from this mitigation method.

Alternative approaches to radon mitigation include sealing cracks in the foundation, caulking gaps around utility penetrations, and installing sump sealants to prevent radon from coming in through floor drains. While these sealing techniques alone may not be as effective as active mitigation systems, they can complement other mitigation measures to further reduce the radon levels inside your home.

What is the Most Effective Radon Mitigation Method?

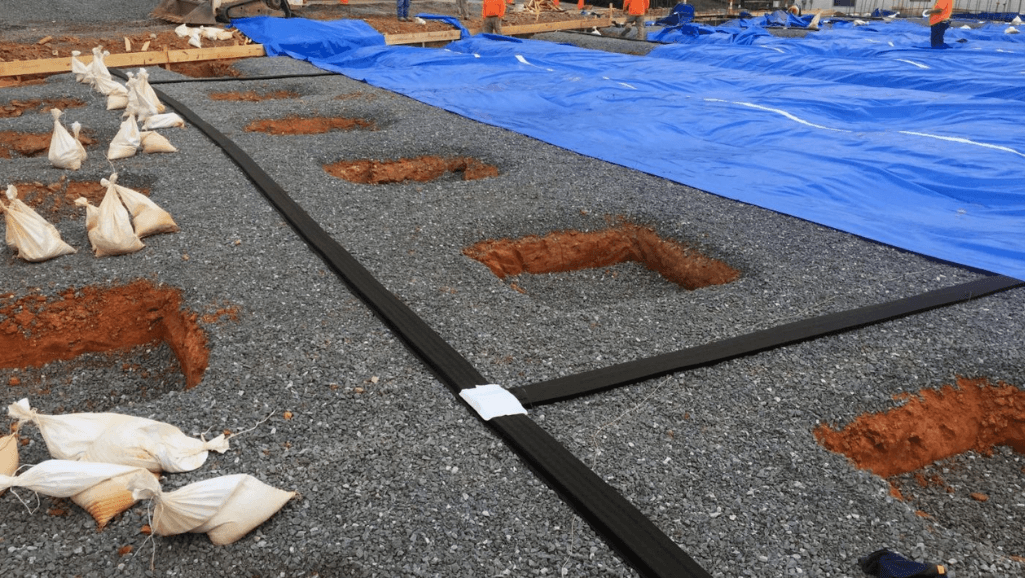

Sub-slab depressurization (SSD) - Radon Mitigation Method

The most effective radon mitigation method depends on various factors, including the home’s construction, foundation type, soil characteristics, and local climate. However, sub-slab depressurization (SSD) is generally considered the most effective approach for reducing indoor radon levels. SSD systems create negative pressure zones beneath the home's foundation, intercepting radon before it can infiltrate the indoor environment. This is ideal for homes with concrete slab-on-grade or basement foundations, and they offer consistent and reliable radon reduction, making them a preferred choice for many homeowners.

Choosing the Right Mitigation System

Selecting the appropriate radon mitigation system is essential in effectively reducing indoor radon levels and ensuring a safe and healthy indoor environment for you and your family. To choose the right mitigation system for your home, you’ll need to consider many factors including your home’s construction and foundation type, the type of soil beneath your home, and the local climate.

The type of foundation and construction of the building will influence the suitability of various mitigation methods. For example, sub-slab depressurization is ideal for homes with concrete slab-on-grade or basement foundations, while crawl space ventilation may be more suitable for homes with elevated crawl spaces. Soil looseness and radon concentration levels in the surrounding soil can also impact the effectiveness of mitigation systems. High radon levels in the soil may require more aggressive measures to reduce your indoor radon concentration to a safe level. Climate conditions, such as temperature and humidity, also affect the performance of radon mitigation systems, so consider your area’s freeze-thaw cycles and moisture levels.

Radon Test by WIN Home Inspection As a WIN home inspector and trainer, I've seen firsthand the detrimental effects that radon can have on both homes and occupants. Radon is a silent threat, seeping in through cracks in the foundation and accumulating to dangerous levels over time.

Implementing a radon mitigation system can drastically improve the safety and livability of a home. Radon mitigation systems effectively vent radon gas out of the home, significantly reducing the risk of long-term health issues associated with exposure.

Homeowners who have invested in radon mitigation systems not only enjoy improved indoor air quality but also have the relief of knowing their loved ones are protected. As an advocate for my community’s well-being, I can't stress enough the importance of addressing radon and implementing mitigation measures to prevent this radioactive toxin from breaching our health and safety.

How to Install a Radon Mitigation System

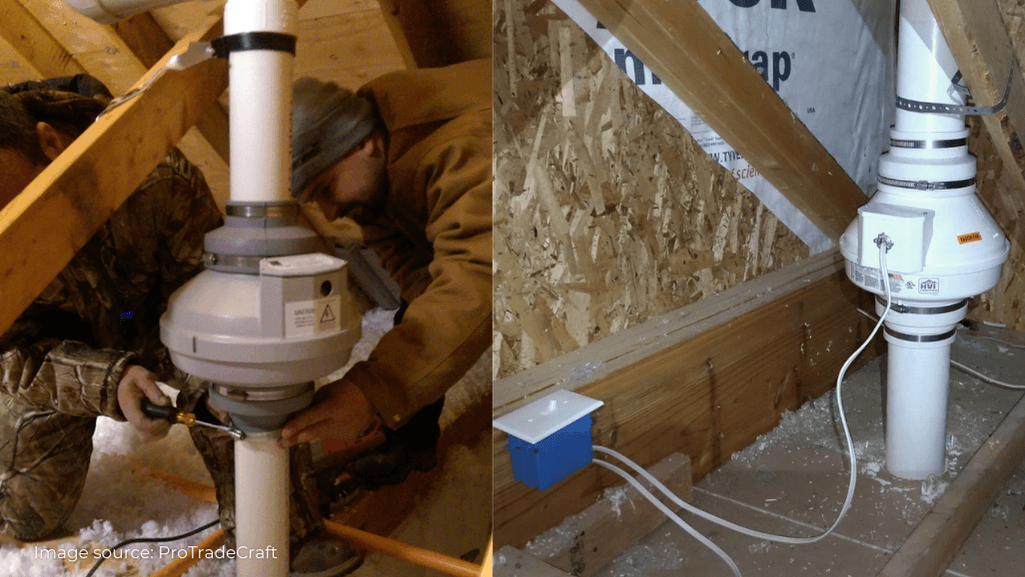

How to Install a Radon Mitigation System

While radon mitigation systems are designed to reduce indoor radon levels, their performance relies heavily on being installed correctly and having routine maintenance.

Professional installation is highly recommended as these systems can be complicated and often need an expert’s opinion. Before beginning installation, the specialist will assess the property to determine the most suitable mitigation method based on the factors we explored earlier, including the building construction, soil characteristics and radon levels. Based on the site assessment, the radon mitigation specialist can design a customized radon mitigation system tailored to the specific needs of the property. The mitigation system components, including suction points, piping, radon-specific fan, and vent termination, are installed according to industry standards and local building codes. Once installed, the system is tested to ensure it’s functioning properly.

The initial installation cost can vary greatly depending on factors like the type of system and property size, so homeowners can expect to pay between $800 and $2500.

How to Maintain Your Radon Mitigation System

Regular maintenance is essential to keep radon mitigation systems operating effectively. You should have it inspected regularly and the radon-specific fan tested to ensure proper operation and airflow. You should also inspect the vent pipe periodically to check for blockages, damage, or deterioration, and actively monitor radon levels in your home to ensure the system is working properly.

Maintenance costs, including fan replacements, inspections, and testing, may average around $100 to $200 annually. Investing in professional installation and regular maintenance can ultimately save homeowners money by ensuring the long-term effectiveness of their radon mitigation systems and protecting against potential health risks associated with radon exposure.

Cost of a Typical Radon Mitigation System

The cost of a radon mitigation system can vary depending on several factors, including the size of the property, type of foundation and any additional features required. However, to provide a general estimate, we can break down the typical costs involved in radon mitigation:

  • Initial Installation Cost: The average cost of installing a radon mitigation system range from $800 to $2500. For example, for a standard single-family home with a concrete slab foundation, the installation cost may be around $1200 to $1500. This includes the installation of suction points, piping, a radon-specific fan, and vent termination.

  • Maintenance Cost: Annual maintenance costs for a radon mitigation system typically range from $100 to $200. This includes routine inspections, fan checks, and occasional replacements of components such as the radon-specific fan.

  • Total Cost Over Time: Considering the initial installation cost and annual maintenance expenses, the total cost of owning a radon mitigation system over a 10-year period may range from $2000 to $4500. This estimate provides homeowners with a rough idea of the financial investment required to install and maintain a radon mitigation system over time.

Frequently Asked Questions

Q. Do radon mitigation systems ever not work?

Radon mitigation systems are highly effective in reducing indoor radon levels when properly installed and maintained. However, there are instances where mitigation systems may not achieve desired results. Factors such as inadequate system design, improper installation, or underlying structural issues can impact the system's performance. Regular monitoring of indoor radon levels and prompt attention to any deviations can help identify and address potential issues with the mitigation system.

Q. How much electricity does a radon mitigation system consume?

How much electricity a radon mitigation system consumes varies depending on factors such as the size of the fan, system design, and operating conditions. On average, radon mitigation fans typically consume between 50 to 200 watts of electricity. With continuous operation, the annual electricity cost can range from $50 to $200, depending on local utility rates and fan efficiency. While the energy consumption of radon mitigation systems is relatively low, it's important to consider this factor when evaluating the overall cost of ownership.

Q. What is the lifespan of a radon mitigation system?

The lifespan of a radon mitigation system depends on several factors, including the quality of installation, the durability of components, and regular maintenance. In general, radon-specific fans have an average lifespan of 5 to 10 years, although some may last longer with proper care. PVC piping and other system components can last for decades with minimal maintenance. Routine inspections and timely replacement of worn or damaged components can help extend the lifespan of the mitigation system and ensure continued effectiveness in reducing indoor radon levels.

Q. Can I install a radon mitigation system myself?

While it's possible to install a radon mitigation system yourself, it's highly recommended to seek professional help. Radon mitigation involves specialized knowledge of building construction, radon dynamics, and mitigation techniques. Professional radon mitigation contractors have the expertise and experience to assess your home's unique characteristics, design an effective mitigation system, and ensure proper installation and performance.

Q. How long does it take to install a Radon Mitigation System?

The installation time for a radon mitigation system can vary depending on factors such as the size and complexity of the property, the type of foundation, and local building codes. In general, a typical installation may take one to two days to complete. This includes site assessment, system design, installation of components such as suction points, piping, radon-specific fan, and vent termination, and testing and verification of system functionality. Professional radon mitigation contractors can provide more accurate estimates based on your specific circumstances and requirements.

Radon mitigation systems play a crucial role in safeguarding indoor air quality and protecting you from the hazardous health risks associated with prolonged radon exposure. By creating negative pressure zones and venting radon gas outdoors, these systems effectively reduce indoor radon levels to safe concentrations, providing homeowners with peace of mind and a healthier living environment. If you properly install it, maintain it and monitor it, you can ensure the long-term reliability of your radon mitigation system.
